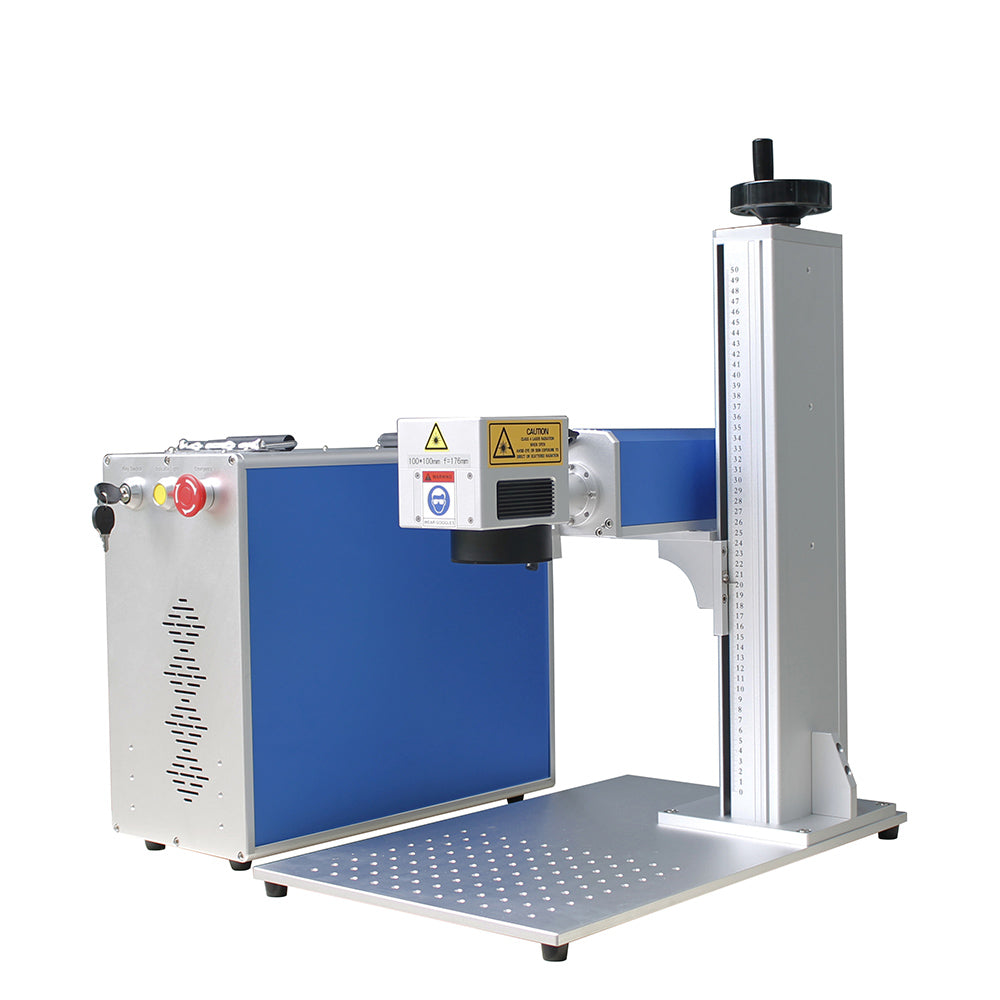

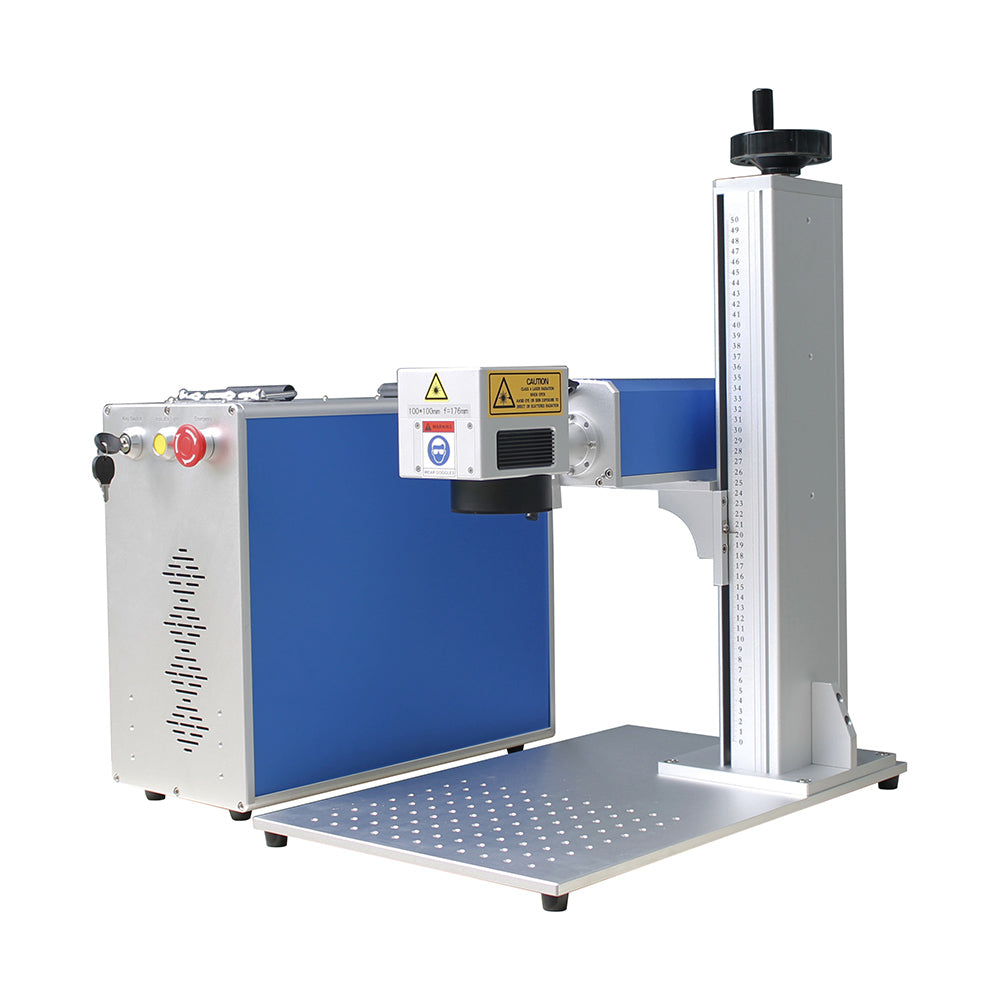

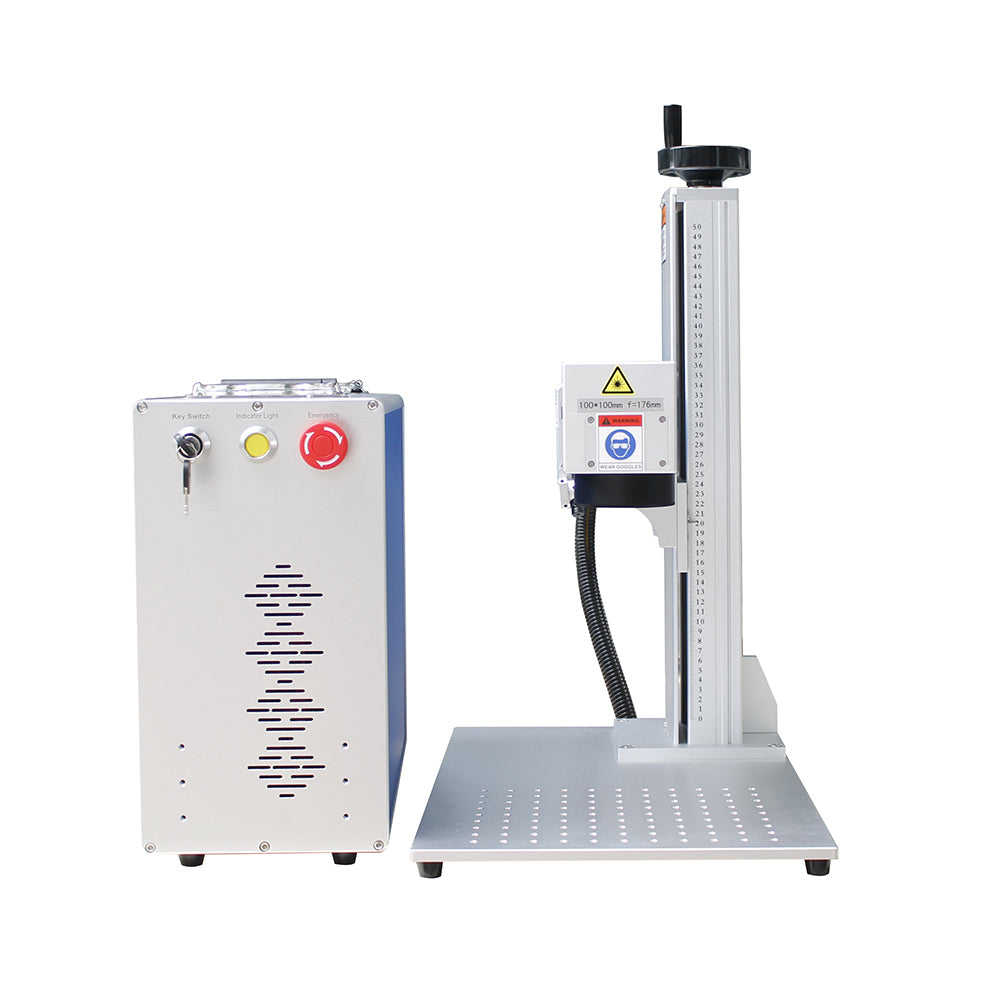

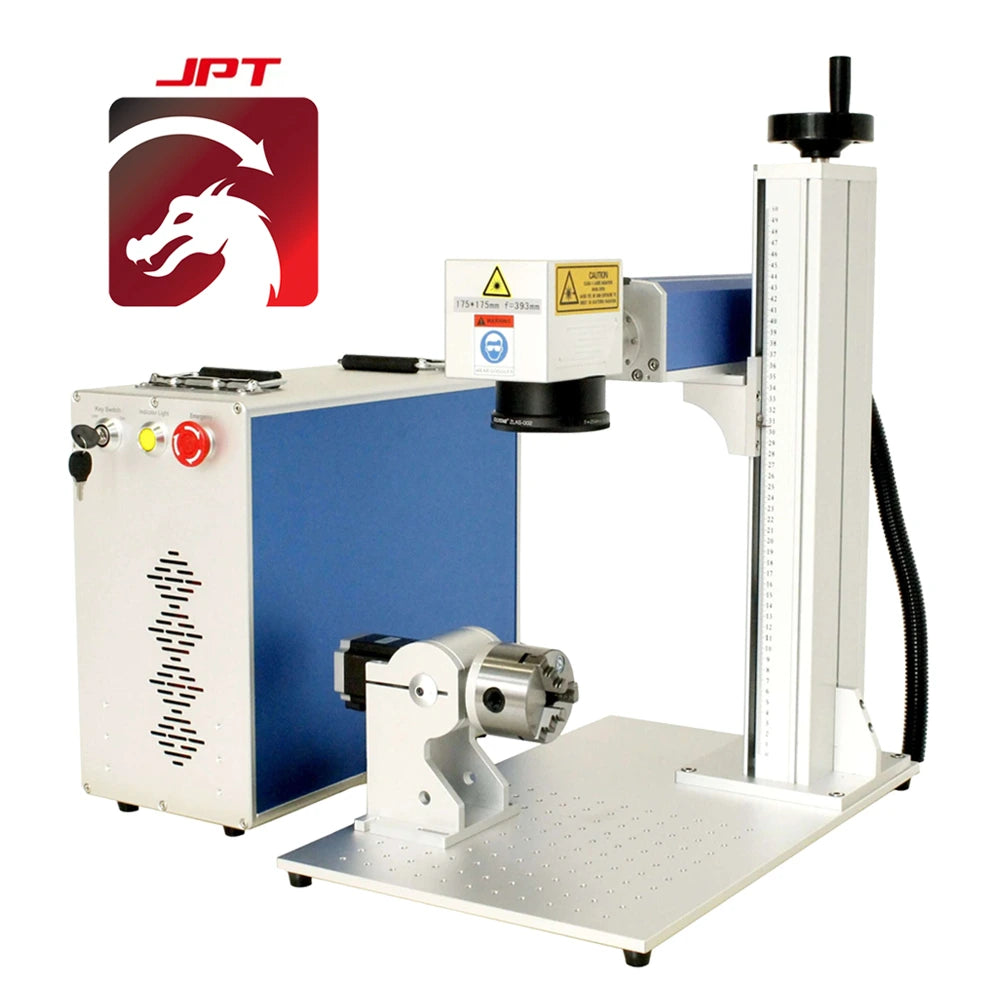

50W JPT LP+ Fiber Lasesr Engraver 175x175mm Marking Area Metal Fiber Laser Marking Machine with D80 Rotary Axis

Product Specifications

• Laser Source: JPT 50W LP+
• Laser Wavelenth:1064nm
• Pulse Width:200ns
• Pulse Energy:1.25mj
• Marking Speed:7000mm/s
• Engraving Depth:0.5-0.8mm
• Repetition Frequency:1-600kHz
• Repeated Accuracy:0.002mm
• Software:EZCAD 2 / EZCAD 3 (Lightburn Compatible)
• Marking Area:110x110mm, 150x150mm, 175x175mm (Optional)

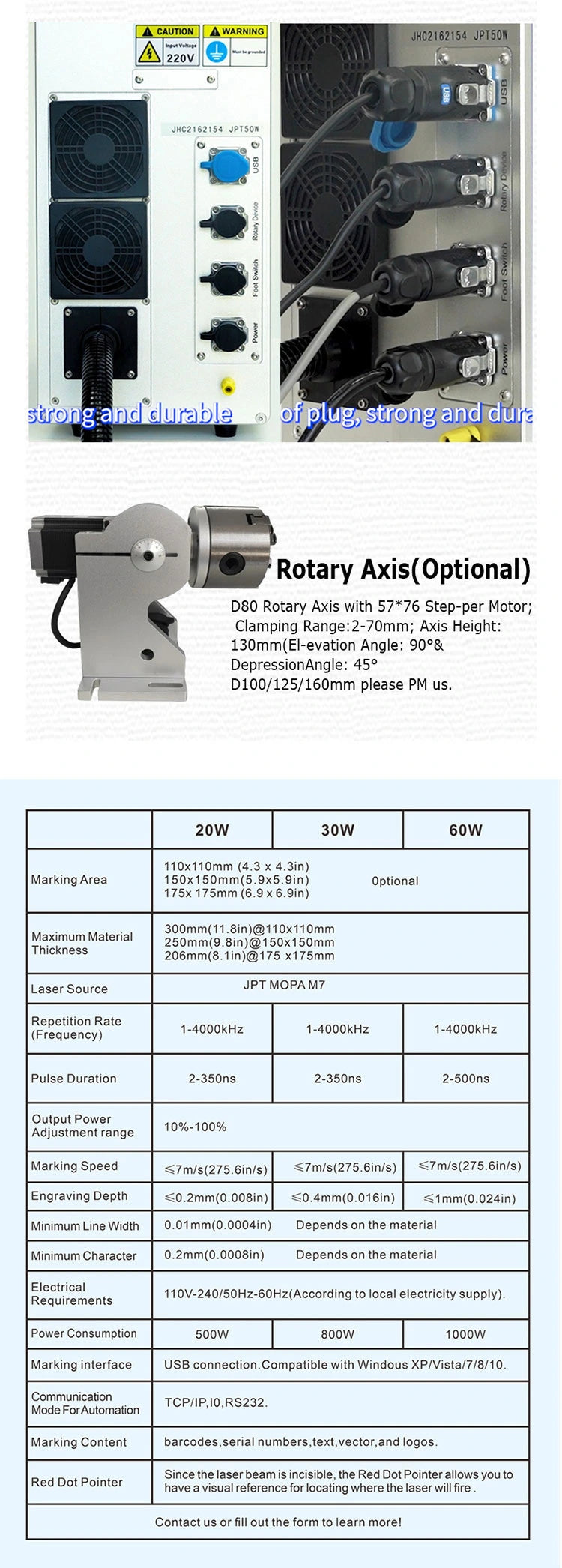

• Rotary Axis:D69, D80, D100, D125 (Optional)
• Output Power:10%-100%
• Voltage:110V/220V
• Power Consumption:≤1000W
• Min. Line Width:0.01mm
• Min Charater:0.02mm
• Marking Content:Barcodes, Serial Numbers, Text, Vector, Logos
• OLM:USB（Windows XP/7/8/10/11 Compatible）

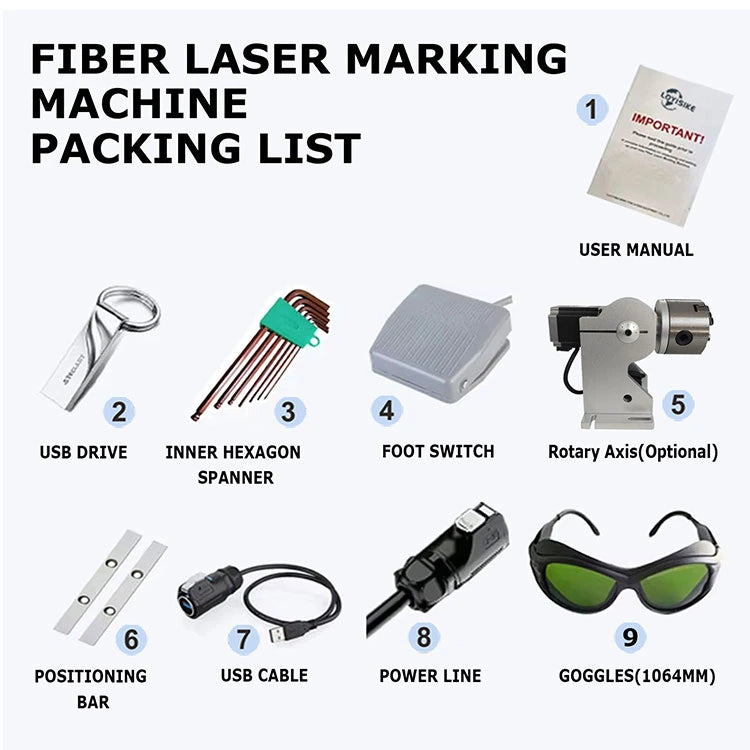

• Optional Parts:Worktable, Laptop, Rotary Axis, Glasses, Protect Case

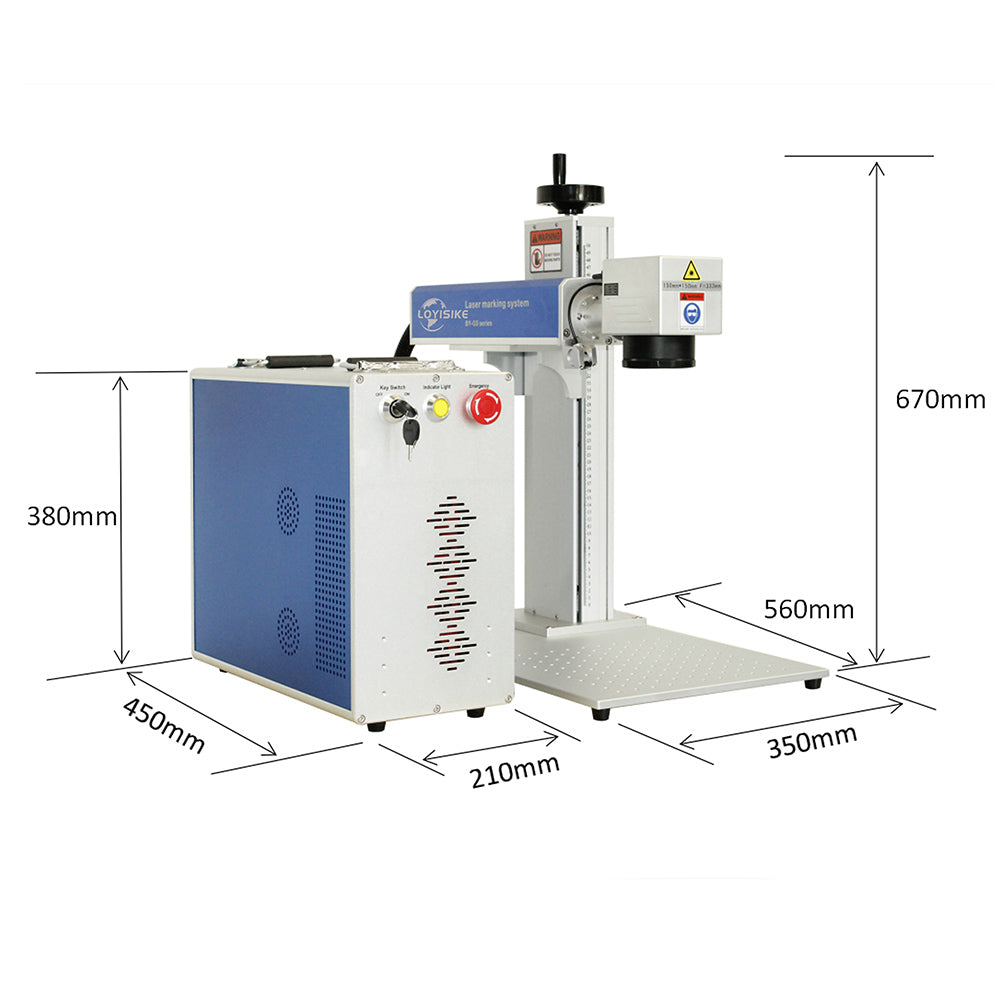

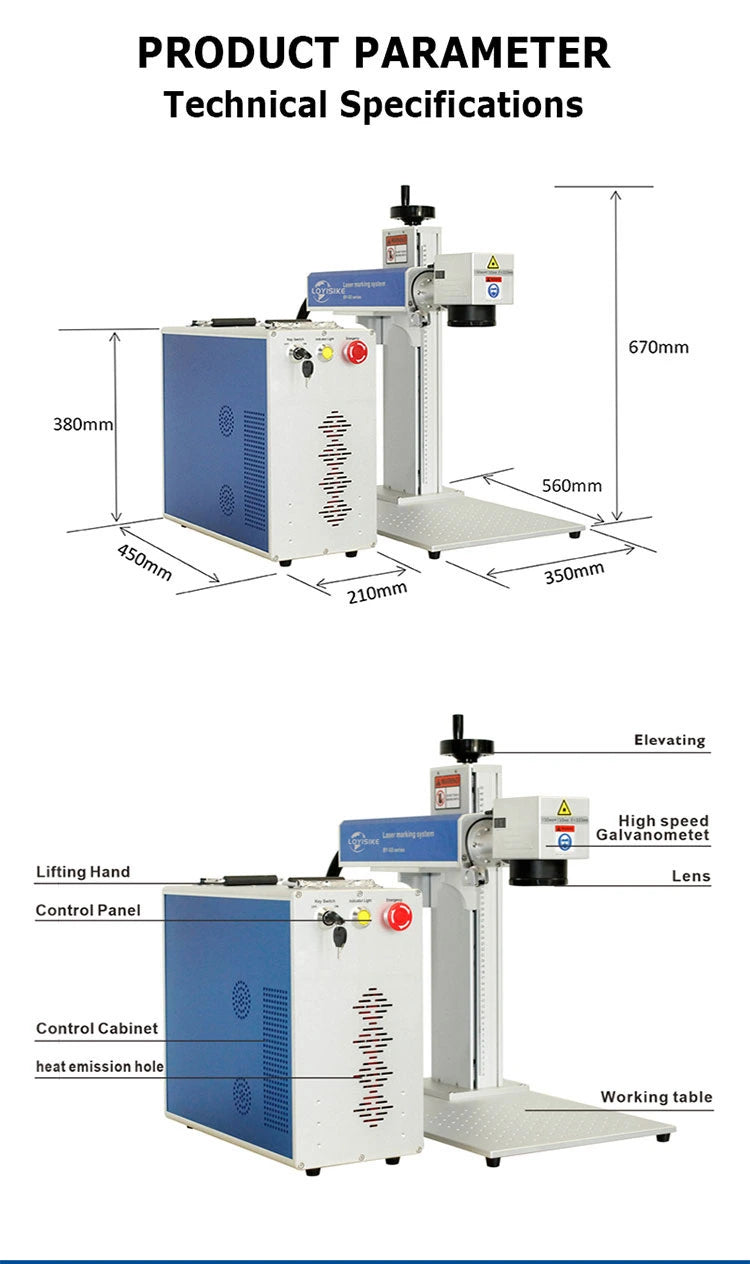

• Product/Packing Size:450x210x380mm/780x480x810mm
• Product/Packing Weight:45Kg, 62Kg
• Packing Method:Professional Export Wooden Box, Internal Foam Encapsulation.
• Customized Demand:Automation, Brand, Logo, OEM, ODM (Acceptable)

Product Features

• Excellent beam quality and high marking accuracy make it particularly suitable for permanent marking of tiny parts, precision instruments, and electronic components.

• High electro-optical conversion efficiency and low operating costs enable significant electricity savings over the long term, aligning with energy conservation and environmental protection trends.

• Long service life, high stability, and simplified maintenance enable a service life of over 100,000 hours.

• High marking speed and efficiency are crucial for high-volume, assembly-line production, significantly improving productivity.
• A minimal heat-affected zone preserves the original material properties and prevents deformation.

• Compact size and high integration density make it easy to integrate into automated production lines or robotic arms, enabling high-speed and flexible production.

• Easy to use, it supports importing a variety of file formats (vector graphics, bitmaps, fonts, barcodes, QR codes, etc.).

Application

• While fiber laser marking machines are most effective at marking highly reflective metals (such as gold, silver, copper, and aluminum)—producing clear, high-contrast, and durable marks—they also effectively handle most metals (iron, stainless steel, titanium alloy, and alloy steel), as well as various plastics, ceramics, plating/oxidation layers, and coatings. They are particularly adept at creating a variety of effects on metal surfaces, including deep and shallow engraving, annealing, blackening, and coloring.

• Fiber laser marking machines are particularly well-suited for applications requiring high-speed, high-precision, high-quality, and low-cost permanent marking, particularly in industries primarily focused on metal materials. These applications include electronic components (ICs and PCBs), hardware tools, automotive and motorcycle parts, medical devices and surgical instruments, kitchen and bathroom fixtures and faucets, metal gifts, trophies, and medals, molds, precision machinery parts, plastic buttons and casings (certain types), batteries and chargers, aerospace components, and various metal nameplates and signs.

Service & Support

• Machine delivery with DDP shipping service, no extra cost.
• Machine comes with using video and we also have technical person at your service for the using guide.
• We provide 2 years warranty for whole machine, 1 years for laser source.
