Description

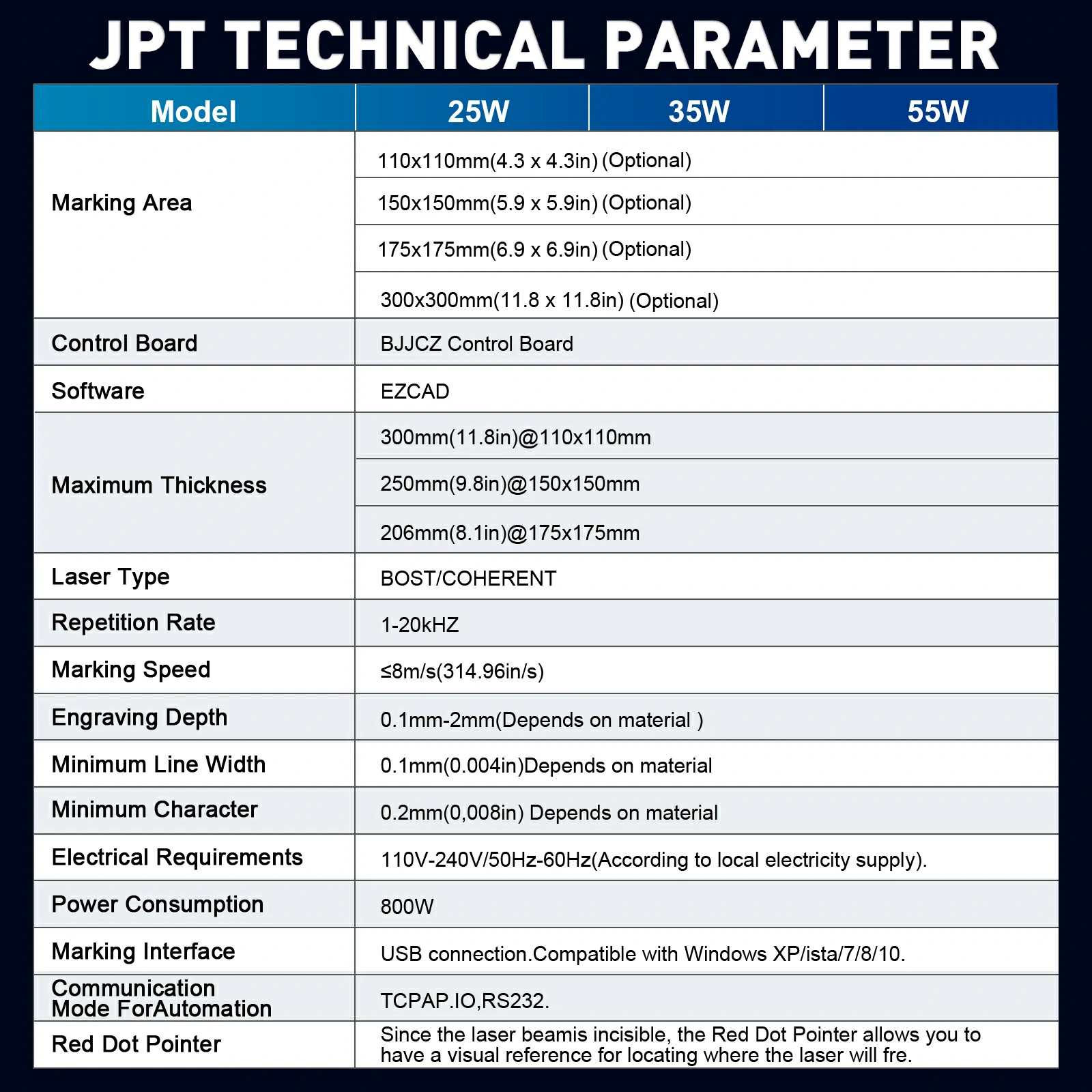

TECHNICAL PARAMETER

• Model:30W/35W/40W/55W

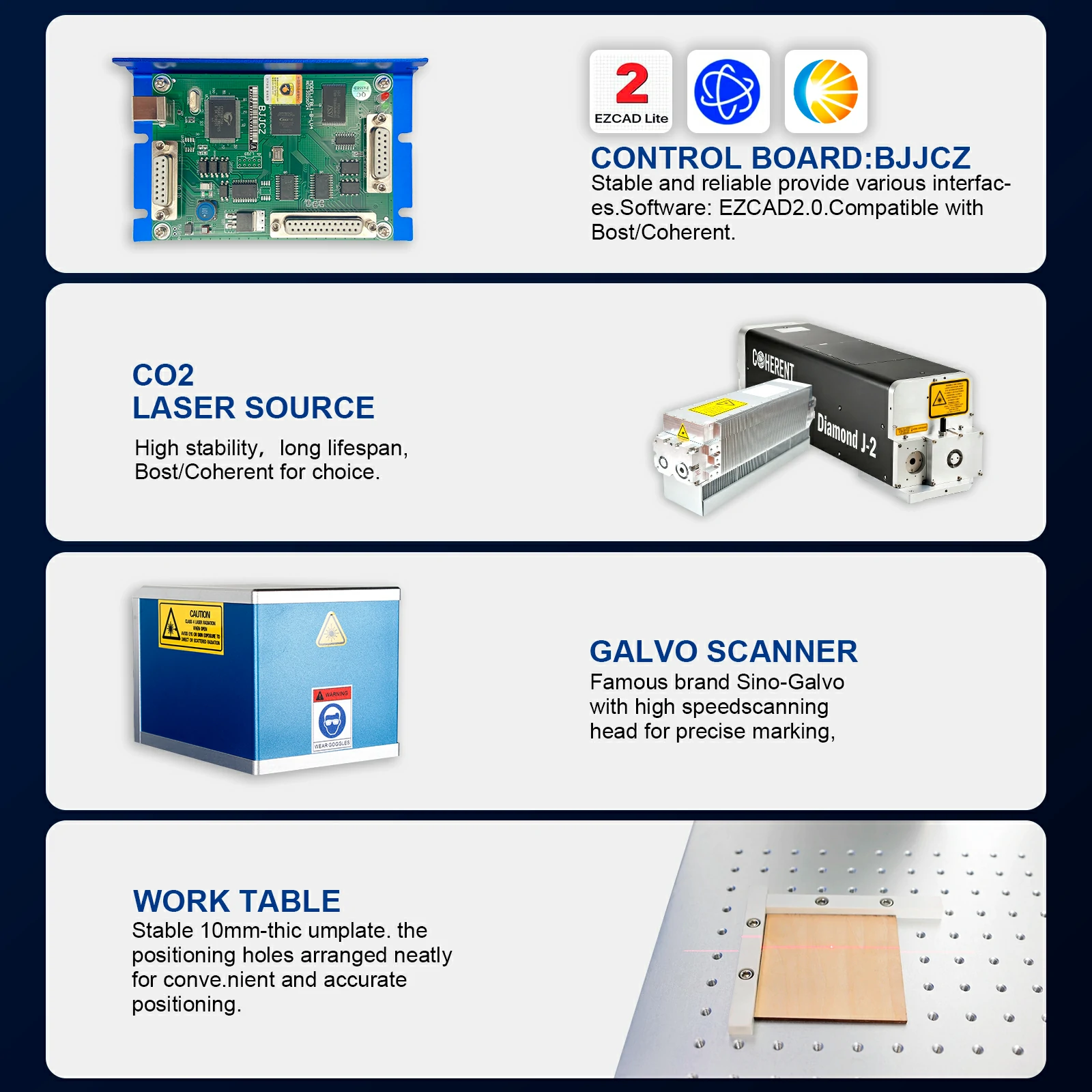

• Control Board:BJJCZ Control Board

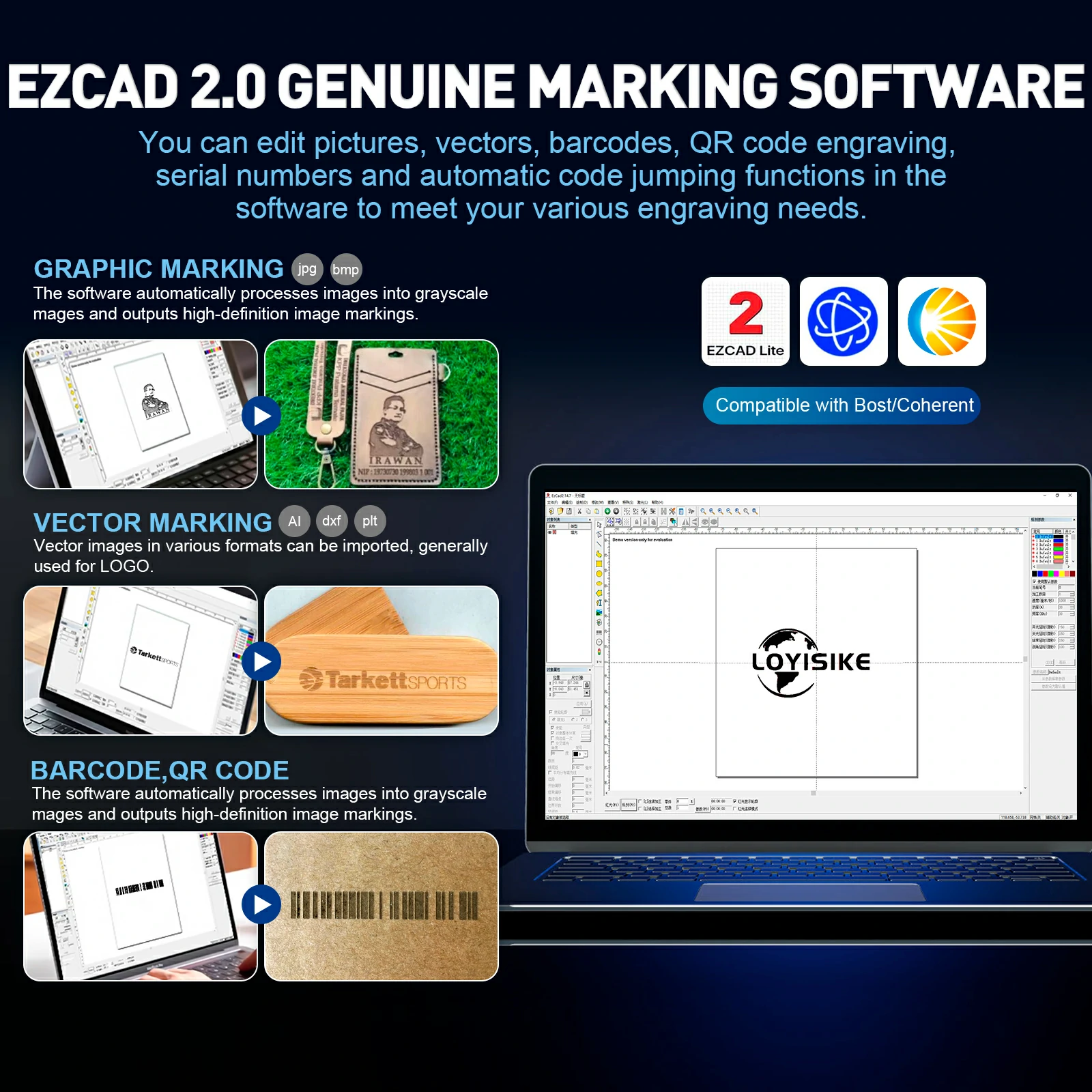

• Software:EZCAD
• Laser Type:BOST/COHERENT

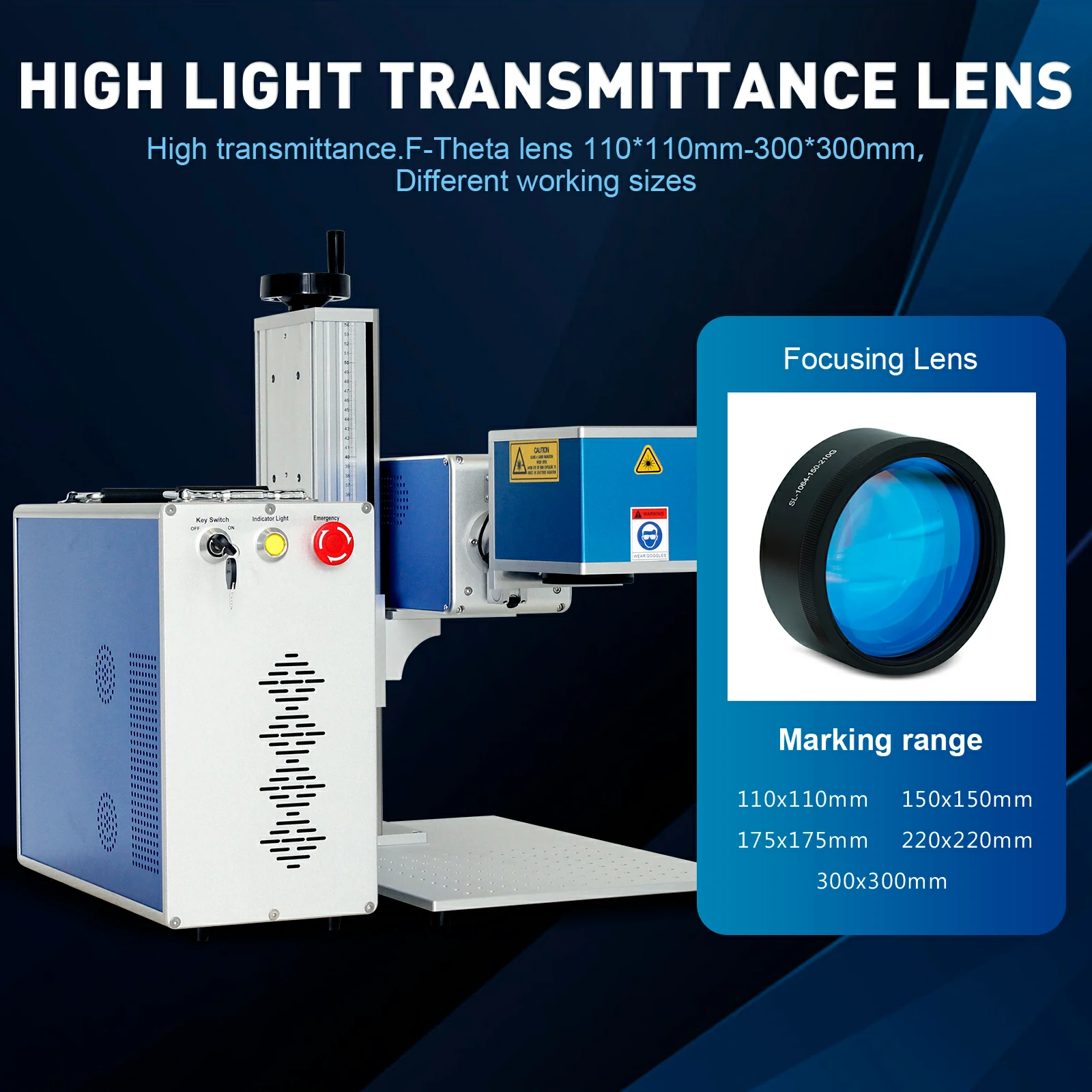

• Marking Area:110x110mm(4.3 x4.3in)/150x150mm(5.9 x5.9in)/175x175mm(6.9 x6.9in)/300x300mm(11.8 x11.8in)(Optional)
• Maximum Thickness:250mm(9.8in)@150x150mm/206mm(8.1in)@175x175mm/300mm(11.8in)@110x110mm
• Repetition Rate:1-20kHZ

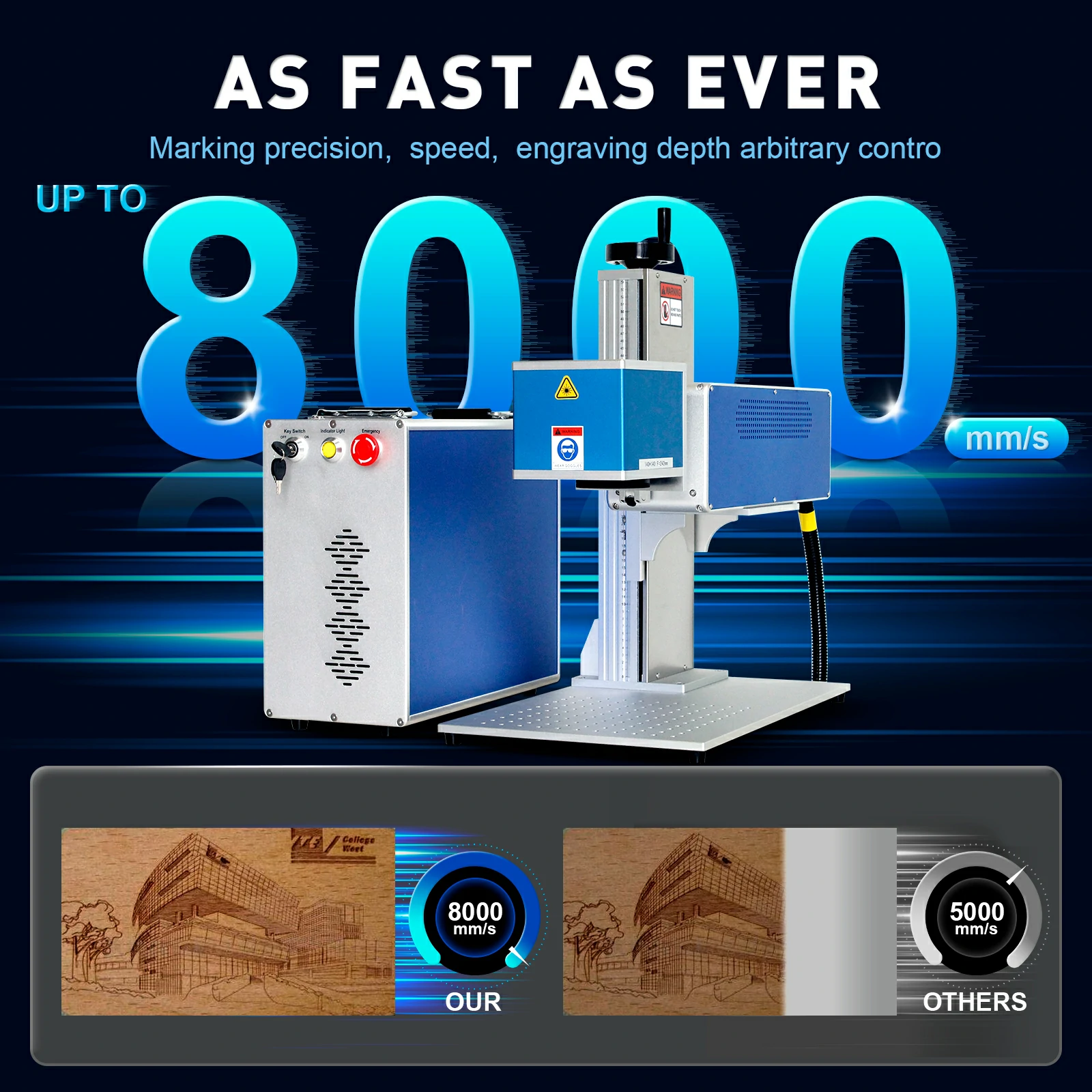

• Marking Speed:≤8m/s(314.96in/s)
• Engraving Depth:0.1mm-2mm(Depends on material )
• Minimum Line Width:0.1mm(0.004in)Depends on material
• Minimum Character:0.2mm(0,008in) Depends on material
• Electrical Requirements:110V-240V150Hz-60Hz(According to local electricity supply).
• Power Consumption:800W
• Marking Interface:USB connection.Compatible with Windows XP/ista/7/8/10.
• CommunicationMode For Automation:TCPAP.IO,RS232.
• Red Dot Pointer:Since the laser beamis incisible, the Red Dot Pointer allows you tohave a visual reference for locating where the laser will fre.

Advantages of CO₂ Laser Marking Machine

• Non-Contact Marking
  Laser processing without physical contact ensures no tool wear and no damage to the material surface.
• Excellent Marking Quality
  Produces clear, permanent, and high-contrast markings with smooth edges.
• High Speed & Efficiency
  Fast marking speed supports mass production and improves overall efficiency.
• Wide Material Compatibility
  Ideal for non-metal materials such as wood, acrylic, leather, glass, rubber, paper, plastics, fabrics, and ceramics.
• Low Operating Cost
  Long laser life, minimal maintenance, and no consumables reduce long-term operating costs.
• Environmentally Friendly
  No inks, chemicals, or consumables; clean and eco-friendly marking process.
• Flexible Content Marking
  Supports text, logos, graphics, barcodes, QR codes, serial numbers, and variable data.

Applications of CO₂ Laser Marking Machine

CO₂ laser marking machines are widely used in various industries, especially for non-metal materials:

• Packaging Industry
  Marking on cartons, paper packaging, plastic bags, bottles, and food packaging.
• Advertising & Signage
  Engraving logos, signs, nameplates, and decorative designs on acrylic, wood, and plastic.
• Woodworking & Crafts
  Engraving patterns, photos, and texts on wood products, gifts, and handicrafts.
• Leather & Textile Industry
  Marking and engraving on leather goods, fabrics, denim, and synthetic materials.
• Electronics & Components
  Marking labels, symbols, and traceability codes on plastic electronic parts.
• Medical & Pharmaceutical
  Marking medical packaging, syringes, and plastic medical components.
• Glass & Ceramic Products
  Surface marking on glassware, ceramics, and coated glass materials.

Service & Support

• Machine delivery with DDP shipping service, no extra cost.
• Machine comes with using video and we also have technical person at your service for the using guide.
• We provide 2 years warranty for whole machine, 1 years for laser source.
